K - 83 FACADE
Product description：

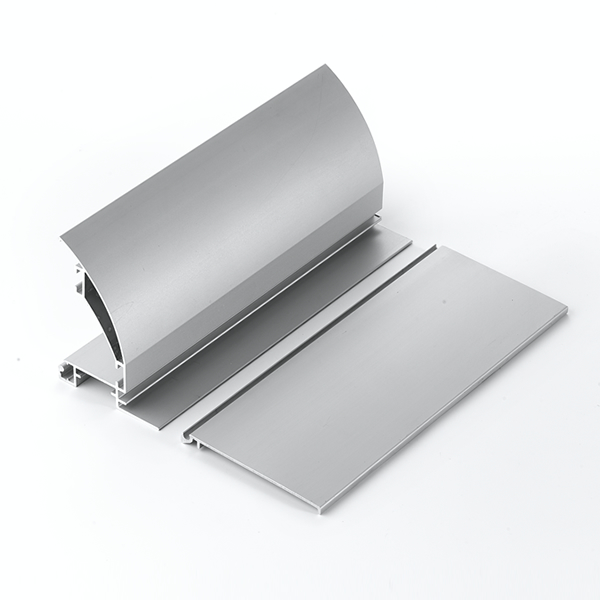

80mm side-snap aluminum profile is designed under triangle mechancs,specially for large size engineering fabric light box, it will keep the shape under great stress. Frameless design in the front, breaks through advertising vision limit, 100% perfect poster and maximize advertising display. It is very easy to change poster and perfect appearance in the form of hiding the accessories, such as shrapnel, slide fastener… inside of the aluminum profile. This aluminum profiles are widely used for airports, high-speed rail, shopping malls and other large size indoor/outdoor advertising.
APPLICATION
- Standard : Indoor & Outdoor usage
- Signage : Frame system, POP display, Light Boxes
- Display : Retail Fixtures, Kiosk Systems, Trade Shows, Customs Interiors
Backlit
-
Single Side
-
Free Standing
-
Wall Structure
-
Crowd Control
PRINT MEDIA
- PVC Flex & Fabric
SPECIFICATION
| Specification | BASE | COVER |
|---|---|---|
| Aluminium Alloy-6063-T6 | ||
| Depth | 83 mm | 82.10 mm |
| Frame Face / Thickness | 1.5 mm | 1.5 mm |
| Side Options | Single Side | |
| Length | 4.0 mtrs / 5.0 mtrs | |
| Surface | Silver Satin Anodised Other Surafce on Demand | |
| Lighting | Back – lit | |
- Extrusion Frame
- Fabric Graphic

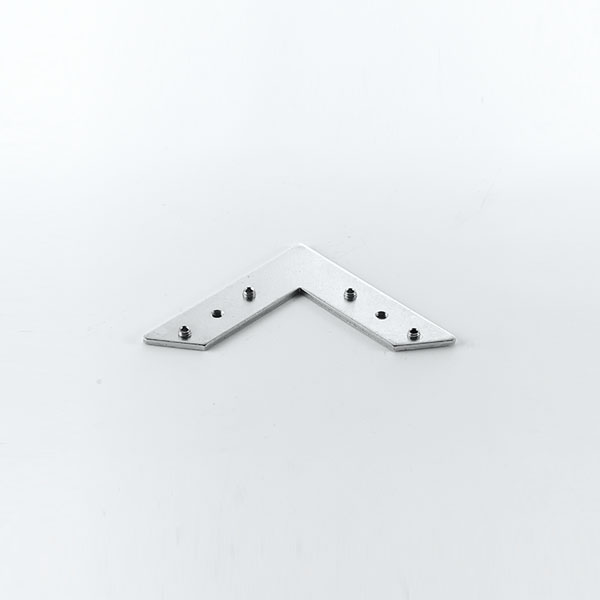

- Accessories

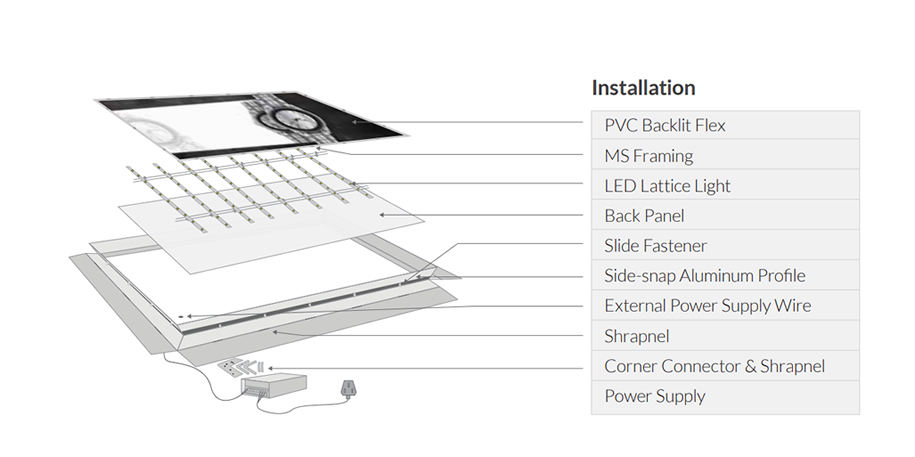

Fabric & PVC Backlit Flex Mounting Option
- Cable Tie with Rivet
- MS Framing Structure
