K-20S
Double Side
-
Backlit
-
Single Side
-
Wall Mount
Karni AluFab Standard Pre-Fab Size Frames give you the following Advantages
- Quick turnaround
- Always available
- More economical then custom sizes
- 3 year warrranty
- Customs size
- Outstanding brightness
- Evan lighting
Standard Pre - Febricated Sizes (K - 20S)
| MODEL | INSERT SIZE | FRAME SIZE | AMPS | POWER |
|---|---|---|---|---|
| ES8511 | 8.5” X 11” | 9.75” X 12.25” | 0.34A | 4.1W |
| ES1117 | 11” X 17” | 12.25” X 18.25” | 0.52A | 63.W |
| ES1722 | 17” X 22” | 18.25” X 2.25” | 0.68A | 8.1W |
| ES2228 | 22” X 28” | 23.25” X 29.25” | 1.72A | 20.7W |
| ES2436 | 27” X 36” | 25.25” X 37.25” | 2.22A | 26.6W |
| ES2448 | 24” X 48” | 25.25” X 49.25” | 2.95A | 35.4W |
| ES3648 | 36” X 48” | 37.25” X 49.25” | 2.95A | 35.4W |
* Brightness : Apx 2800 to 3200 Lux

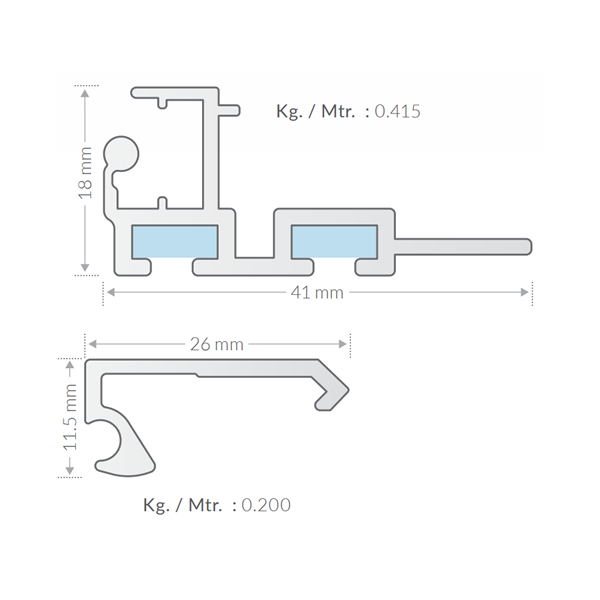

- Extrusion Frame
- Accessories
