K - 16 OVAL
APPLICATION
- Standard : Indoor usage
- Signage : Frame system, POP display
- Display : Retail Fixtures, Cube, Trade Shows, Custom Interiors, Wall Mount, Hanging
Nonlit
-
Single Side
-
Double Side
-
Wall Mount
-
Suspended Display
-
Crowd Control
PRINT MEDIA
- PVC Foam Sheet, ACP, Acrylic (5 mm)

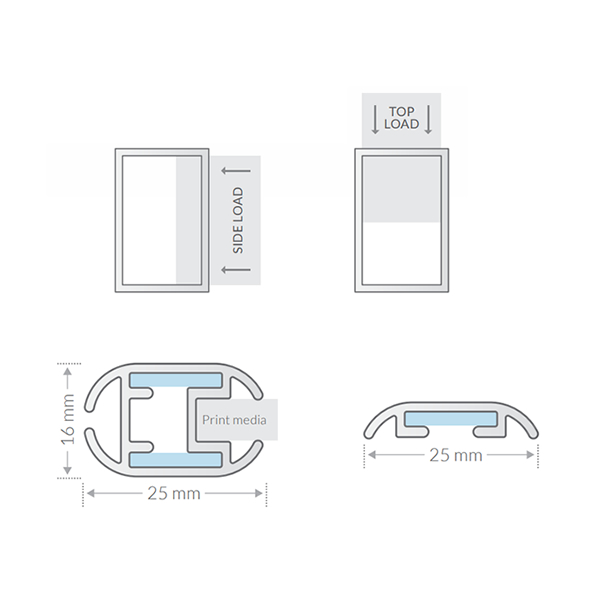

SPECIFICATION
| Specification | BASE – 16 | COVER – 5 |
|---|---|---|
| Aluminium Alloy-6063-T6 | ||
| Depth | 16 mm | 5 mm |
| Thickness | 1.5 mm | 1.5 mm |
| Kg. / Mtr. | 0.350 | 0.145 |
| Side Options | Single & Dual Side | |
| Length | 4.0 mtrs / 5.0 mtrs | |
| Surface | Silver Satin Anodised Other Surafce on Demand | |
| Lighting | Non – lit | |

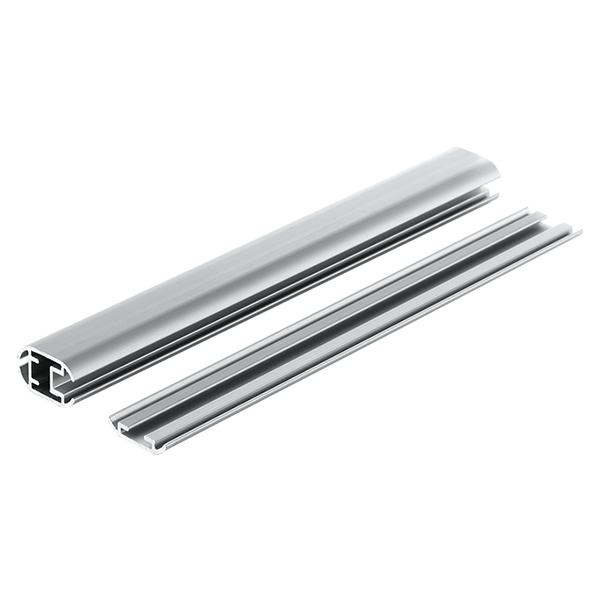

- Extrusion Frame

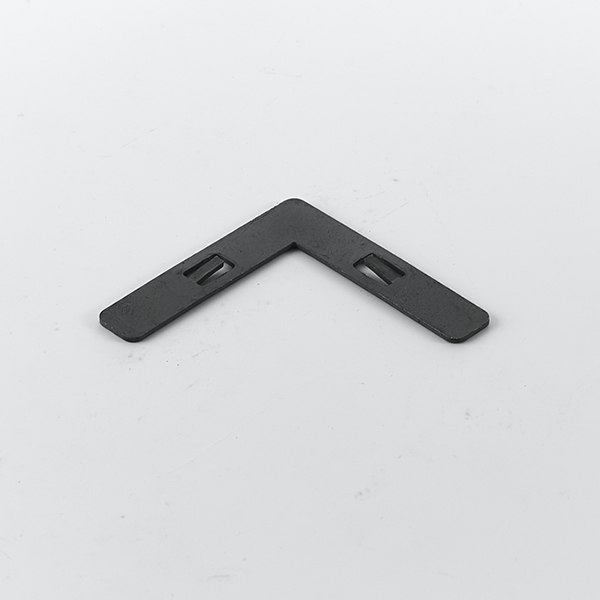

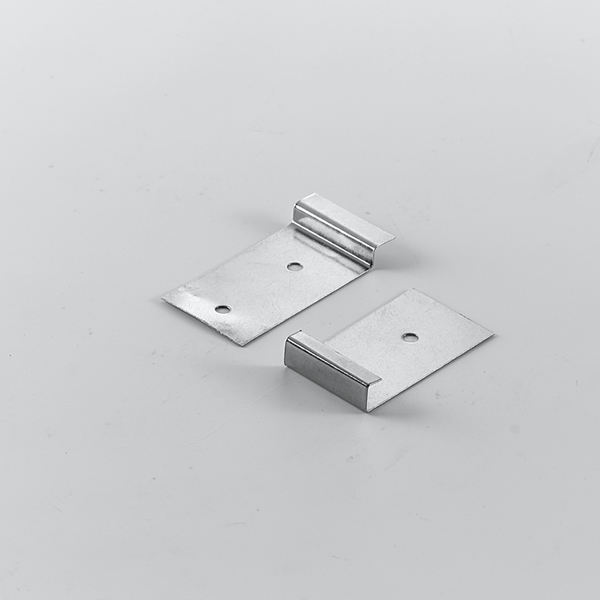

- Accessories
