K-40D
Double Side
-
Backlit
-
Single Side
-
Wall Mount
SPECIFICATION
| Specification | K – 20S | K – 40D |
|---|---|---|
| Side | Single Side | Double Side |
| Frame Thickness | 20 mm | 47 mm |
| Frame Width | 26 mm | 22 mm |
| Minimum Size | 210 x 254 mm | 305 x 305 mm |
| Maximum Size | 915 x 2400 | |
| Light Guide Panel (LGP) | 3 mm & 5 mm Acrylic (PMMA) with V Cut Grove | |
| Frame / Color | Anodise Aluminium / Silver and Black | |
| Open / Close | Snapfront Open / Close | |
| Mounting | Wall Mount by Mou. Clip | Suspending bt wire or road |
| Weight | 1.30 / Sq. Ft | 1.80 / Sq. Ft |
| Input Voltage | D.C 12 Volt / AC 100~240v, 50/60Hz | |
| Luminous Efficiency (White LED) |
105 lm/W | |
| LED Side | Smaller Size – 1 edge, Big Size-2long edge & Bigger Size 4edges |
|
| LED Color Temp. | 6500k | |
| Power Coad / Supply | 18watt / Mtrs | |
| Dimming | By external dimmer ( Optional ) | |
| Operating Temp. | 22 ̊ºF (-30ºC) ~ 104ºF (+40ºC) | |
| Environment | Suitable for indoor and dry location | |

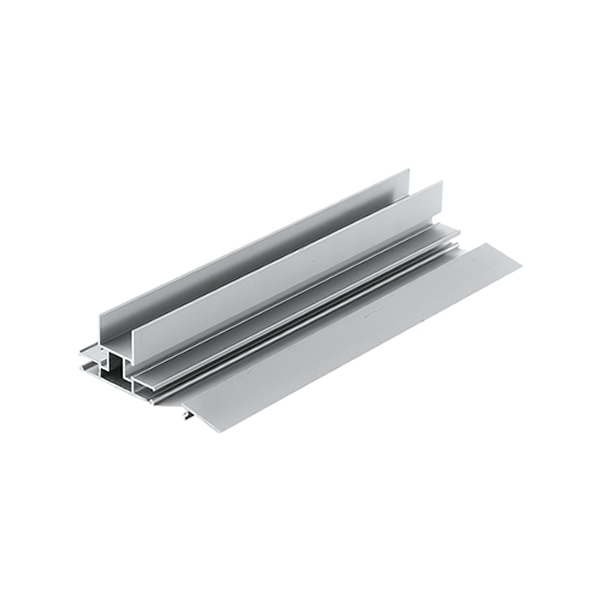

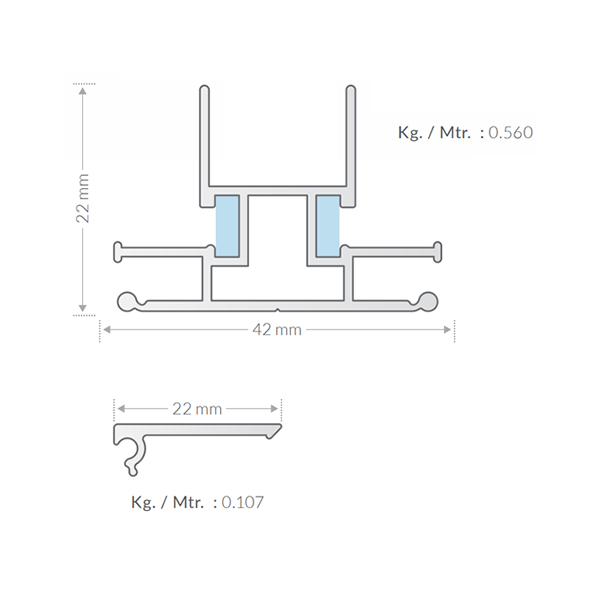

- Extrusion Frame

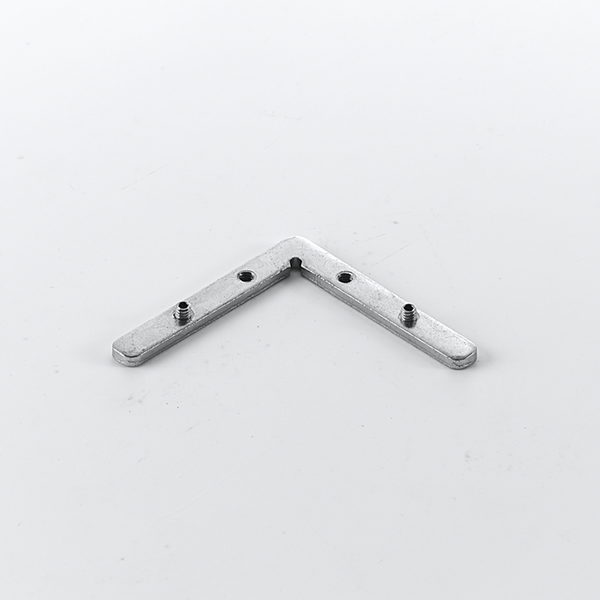

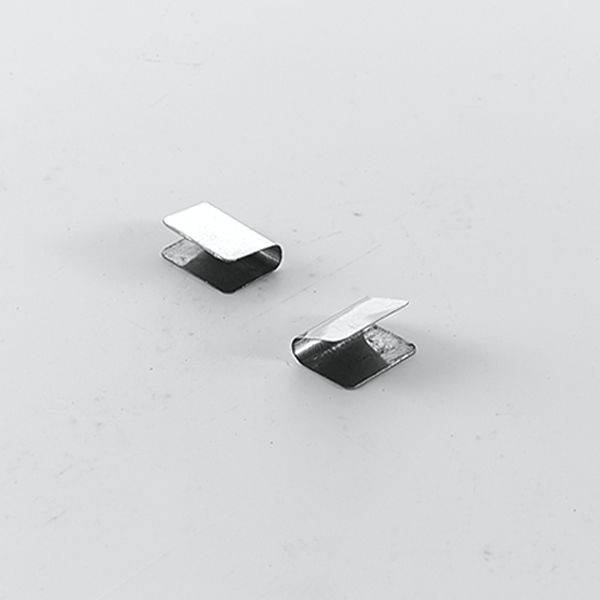

- Accessories
